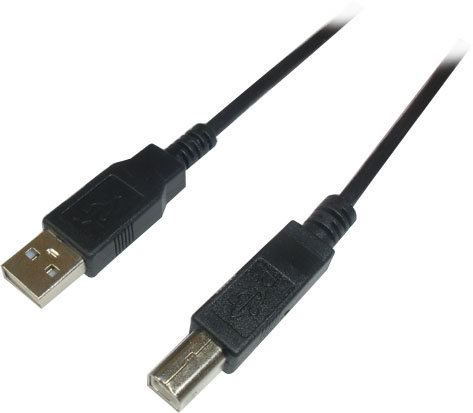

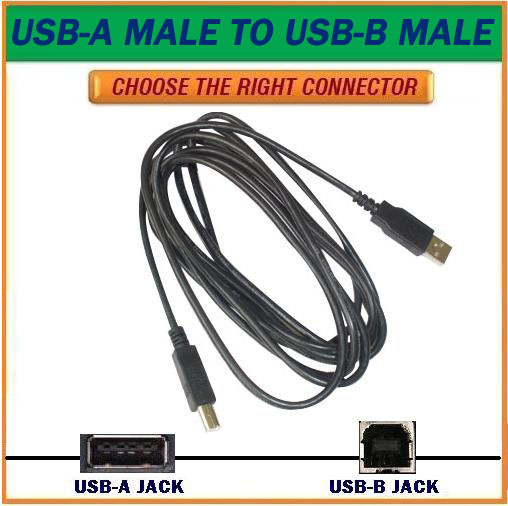

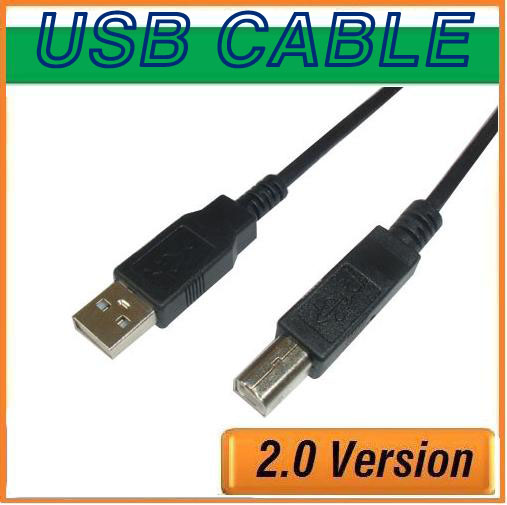

HIGH SPEED USB2.0 CABLE,AM TO BM

Application：

The USB cable/USB A male to B male cable are used to connect the USB-ready computer or USB hub to a digital camera or other portable device,  such as an MP4 player or PDA, etc. This cable is designed and manufactured to USB specifications to ensure it delivers its excellent performance.

Product performance:

1. Guarantees 100% compliance with current USB specifications.

2. This USB cable is compliance with RoHS requirement.

3. USB shield cable 2.0 version, 28AWG Full Shielded

4. Molded:  Non-shift of

5. Lenght:  0.2-8m

6. Insulation Resistance: 10M OHM /300V Min.

7. Contact Resistance: 0.01 OHM Max.

8. Working Temperature: -25ºC ~ +85ºC

9. Insertion Force: 35 N Max.

10. Withdraw Force: 10 N Min
