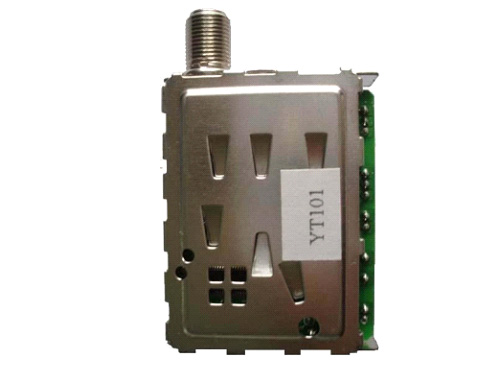

Detailed Product Description
Product features
1) 12C bus control
2) 5V power supply
3) comply with DMB-TH standard
4) horizontal type
5) Apply to DMB-TH
Parameter
Frequency range: 51MHz～862MHz
IF-FRE: 36MHz
Broadband: 8MHz
Ratio frequency power gain: ≥45dB
Total power gain: ≥85dB
Gain inequality: ≤6dB
RF AGC control range: VHF≥50dB UHF≥40dB
Image rejection ratio: VHF≥55dB UHF≥50dB
Intermediate-frequency rejection ratio: VHF≥66dB UHF≥55dB
Standing-wave ratio: ≤6
Noise factor: ≤6dB
Local phase noise: ≤-75dBc/Hz（1kHz) | | NO. | Terminal Name | | 1 | ANT | | 2 | 5V | | 3 | NC | | 4 | Test point | | 5 | 5V | | 6 | 5V | | 7 | SCL | | 8 | SDA | | 9 | NC | | 10 | IF AGC | | 11 | IF OUT+ | | 12 | IF OUT- |
|
